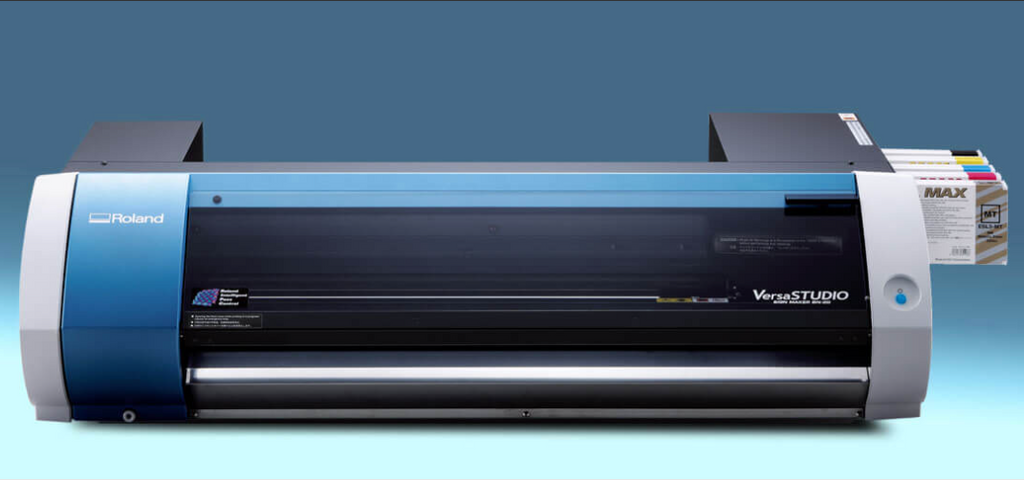

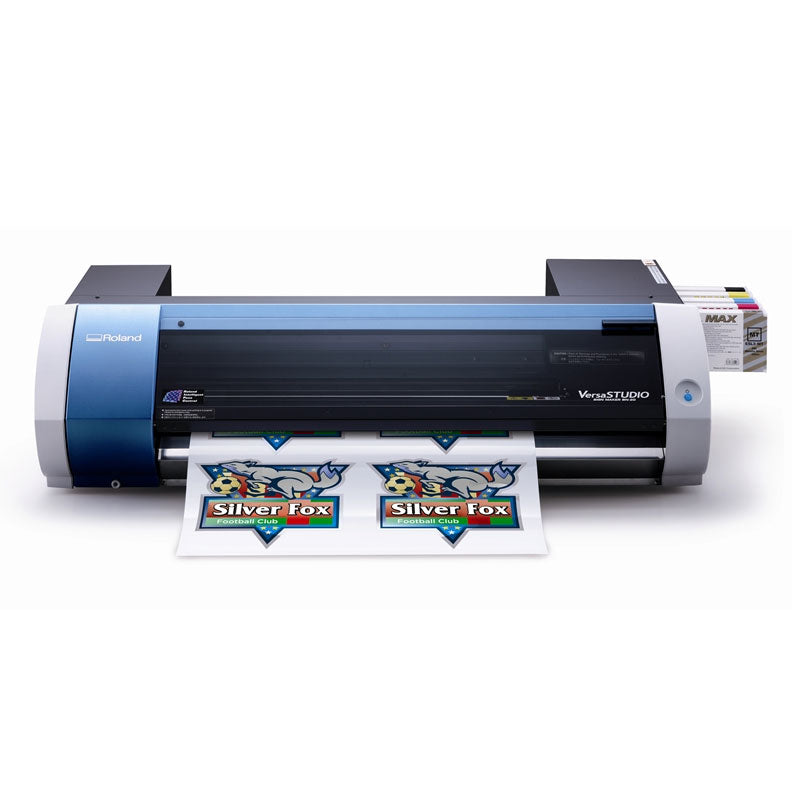

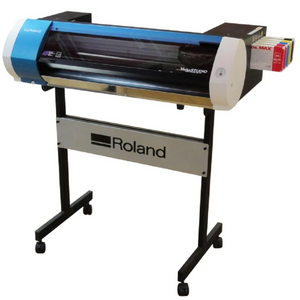

VersaStudio BN-20Desktop Inkjet Printer/Cutter
The BN-20 packs everything into one, powerful, profit-producing package. With award-winning eco-solvent inks including metallic and white options, a range of material compatibility and integrated contour cutting, the BN-20 is easily the most versatile print device in its class.
The BN-20 is perfect for creating t-shirt graphics, poster prints, stickers and decals – all from the comfort of your desktop.
Professional Ink Options in a Desktop Device
Roland ECO-Sol MAX ink offers fast drying time, high density, a wide colour gamut, rugged scratch resistance, a low cost per square foot and broad media support. The BN-20 can be set up in for printing both standard and luxury items.
ECO-SOL MAX ink is available for the BN-20 in the following configurations:
CMYK ink Four-colour standard process colour inkjet printing
CMYK and white ink For use with clear or coloured media on packaging comps, labels, window signs, and other popular applications, white ink can be printed as a spot colour or an undercoat to increase the brightness and opacity of full-colour images
CMYK and metallic silver ink Metallic Silver ink can be printed as a spot colour or combined with CMYK to produce over 500 striking metallic and pearlescent colours, including Roland DG’s Metallic Texture Library of different texture fills
Take Control of Cutting
Combined with 300gm cutting capability, the integrated contour cutting of the BN-20 is consistent and virtually eliminates common problems inherent in drag knife technology with simple up/down electronic controls. Ingenious cutting carriage technology prevents bounce against the media if the force is set too high for the substrate.
Low Maintenance Cost, High Reliability
Built with Roland DG’s legendary reliability, the BN-20 features a gold-plated head to reduce static and prevent clogging and a patent-pending wiper system to decrease wear and tear on the print head and prolong its life by reducing buildup. A patent-pending automated Ink Circulation System reduces waste, for dramatically lower running costs while ensuring exceptional image quality over the long term.
Includes New VersaWorks 6
VersaWorks 6 expands your printer capabilities and maximises the power of your Roland DG devices with new features to enhance the world’s most popular RIP software.
- HARLEQUIN RIP dual-core engine and native 64-bit processing— effective processing of PDF’s with shadows and transparencies
- New icon-based interface with drag-and-drop functionality
- Five print queues and the ability to save and store unlimited queue settings
- Special Colour Plate Generation— auto-generate White, Gloss and other ink layers
- Built-in Pantone® and Roland DG spot colour libraries
- Ink level adjustment tools
- All the advanced and ease-of-use features of VersaWorks
Roland OnSupport Online Production Assistance
Roland OnSupport online production monitor enables remote tracking of production so you can get a text or e-mail when ink is low or a job is finished. Roland OnSupport users can also quickly download firmware updates and important product information.
Environmental Certifications
The BN-20 comes with the Energy Star® seal of approval. It's your guarantee of maximum energy efficiency and lower electric bills. Energy Star is a government-backed program that helps businesses and individuals protect the environment through superior energy efficiency.
Specifications
| Model |
VersaStudio BN-20 |
| Printing method / Cutting method |
Piezoelectric inkjet / Grit roller feed |
| Acceptable media |
Width |
5.9 to 20.3 in. (150 to 515 mm) |
| Thickness |
Printing: Maximum 39 mil (1.0 mm) with liner |
| Cutting: Maximum 16 mil (.4 mm) with liner |
| Roll Weight |
Maximum 13.2 lbs (6 kg) |
| Roll Outer Diamater |
Maximum 5.9 in (150 mm) |
| Core Diamater |
2 in (50.8 mm)or 3 in (76.2 mm) cores |
| Printing/cutting width1 |
Maximum 18.9 in (480 mm) |
| Ink cartridges |
Type |
| Ink Cartridges |
Type & Capacity |
Roland ECO-SOL MAX or FPG Aqueous, 220 ml only |
| Colors |
5 Color – CMYK+Mt (Cyan, Magenta, Yellow, Black and Metallic Silver) or CMYK+Wh (Cyan, Magenta, Yellow, Black, and White) |
| 4 Color - CMMYK (Cyan, Magenta, Yellow, Black) |
| Printing resolution |
Max 1440 dpi |
| Cutting Blade |
Type |
Roland CAMM-1 series cutter blade |
| Blade Offset |
Fixed at 0.250 mm |
| Cutting speed |
0.4 (10 mm/s) to 5.9 in/s (150 mm/s) |
| Blade force |
30 to 300gf |
| Software resolution (when cutting) |
0.000984 in/step (0.025 mm/step) |
| Distance accuracy (when printing)2,3 |
Error of less than ± 0.3 % of distance traveled, or ± 0.3mm (0.012 in), whichever is greater. |
| Distance accuracy (when cutting)2,4 |
Error of less than ± 0.4 % of distance traveled, or ± 0.3mm (0.012 in), whichever is greater. |
| Repetition accuracy (When cutting)2,5 |
±0.004 in (± 0.1mm) or less |
| Alignment accuracy for printing and cutting2,6 |
±0.020 in (± 0.5mm) or less |
| Alignment accuracy for printing and cutting when reloading media2,7 |
Error of less than ± 0.5% of distance traveled, or ± 0.012 in (3mm), whichever is greater |
| Print Heater Temperature8 |
Fixed at 95o F (35oC) |
| Connectivity |
USB 2.0 |
| Power-saving function |
Automatic sleep feature / AC 100 to 240V ± 10%, 1.5 A, 50/60 Hz |
| Power Consumption |
During Operation |
Approx. 90 W |
| Sleep Mode |
Approx. 5.5 W |
| Acoustic Noise Level |
During Operation |
62 dB (A) or less |
| During Standby |
42 dB (A) or less |
| Dimensions/Weight |
39.2" W x 23" D x 11.5" H (995 W x 585 D x 291 H mm), 79.4 lbs (35 kg) |
| Operating Conditions |
Power on |
Temperature: 68o - 90o F (20 to 32o C), humidity: 35 - 80% RH (non condensing) |
| Power off |
Temperature: 41o - 104o F (5 to 40o C), humidity: 20 - 80% RH (non condensing) |
| Included Items |
Power cord, USB cable, blade, blade holder, Rolandsoftware Package9, Software RIP (VersaWorks), User's Manual, etc |
**Training and installation of the printer is an additional cost.
